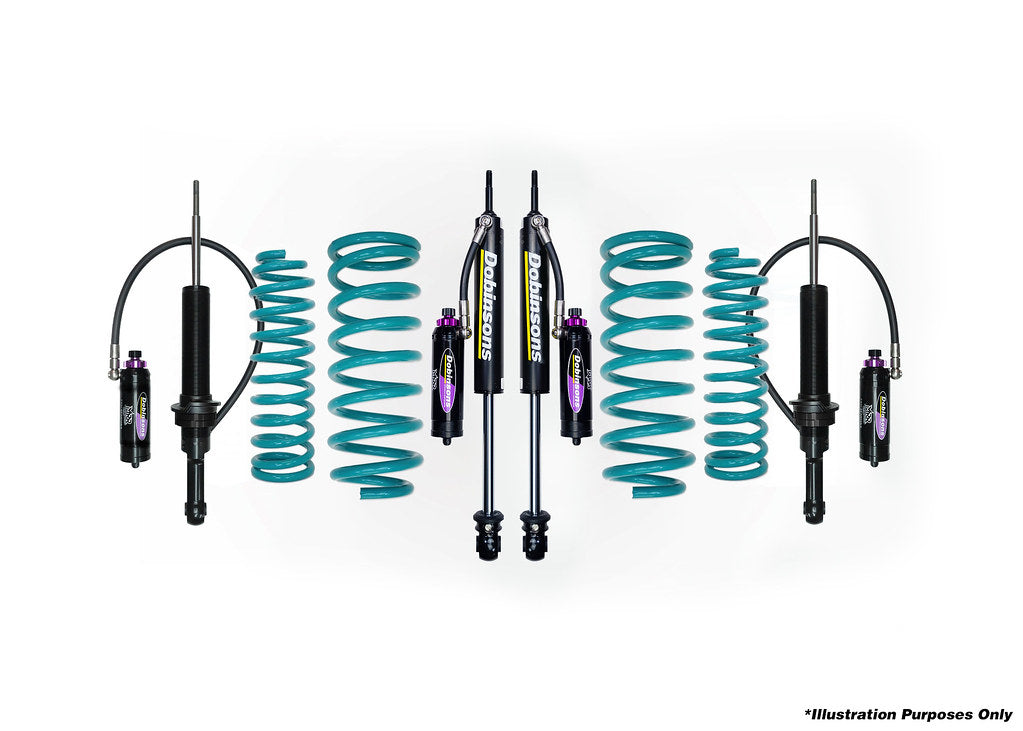

Dobinsons 1.5-3" MRR 3-way Adjustable Lift Kit for Lexus GX470 2002 to 2009 - DSSKITMRA04 - DSSKITMRA04
Front Springs
Rear Springs
Dobinsons 1.5-3" MRR 3-way Adjustable Lift Kit for Lexus GX470 2002 to 2009 - DSSKITMRA04 - DSSKITMRA04
C59-300 / C59-323
837 South Main Street
837 South Main Street
Troutman NC 28166
United States
Experience superior off-road performance with Dobinsons' 1.5-3" MRR 3-way adjustable lift kit for Lexus GX470 2002 to 2009. Increase your ground clearance and enhance your vehicle's capability with this kit, featuring high-quality components and a customizable lift height. Dominate any terrain with confidence and precision.
- Front Coil Spring Specs
- C59-300 - V8 - 1.5" Lift, Stock front end load
- C59-302 - V8 - 2" lift, Stock front end load
- C59-314 - V8 - 2.5" lift, Stock front end load
- C59-352 - V8 - 2.0" lift, 110-220LBS front end load
- C59-354 - V8 - 2.0" lift, 220-350LBS front end load
- Rear Coil Spring Specs
- C59-323 - 0.5" lift, Stock rear end
- C59-599 - 1" lift, Stock rear end
- C59-505 - 1.5" lift, Stock rear end load
- C59-325 - 2" lift, Stock rear end load
- C59-327 - 2" lift, 200-400LB heavy rear load weight
- C59-329 - 2" lift, 600-800lbs heavy rear load weight
- C59-331 - 2" lift, 900-1000lbs super heavy rear load weight
- C59-675V - 2" Stock Load (Variable Rate, Long Travel)
- C59-677V - 2" 400lb Load / 3" Stock Load (Variable Rate, Long Travel)
- C59-701V - 2" 600lb Load / 3" 200lb Load (Variable Rate, Long Travel)
- C59-749V - 2" 800lb Load / 3" 400lb Load (Variable Rate, Long Travel)
- C59-849V - 2" 1000lb+ Load / 3" 600lb Load (Variable Rate, Long Travel)
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
- ***2.5" or more of lift, new UCA's are recommended***
-
****Coil seat for MRA59-A220 should be set at 226mm(8.83") for 3 inchesof lift, for 2 inches of lift the coil seat should be set at 213mm(8.38") from the strut bushing eye. Picture black and white on the listing is to reference how to measure. Please check our instructions section or reach out if you have any questions. If done incorrectly you can damage the shocks, springs and vehicle.*****
Front Strut Assembly Instructions
Front Reservoir Installation Instructions
Reservoir Installation Instructions (Rear)
Strut Assembly Video
--
